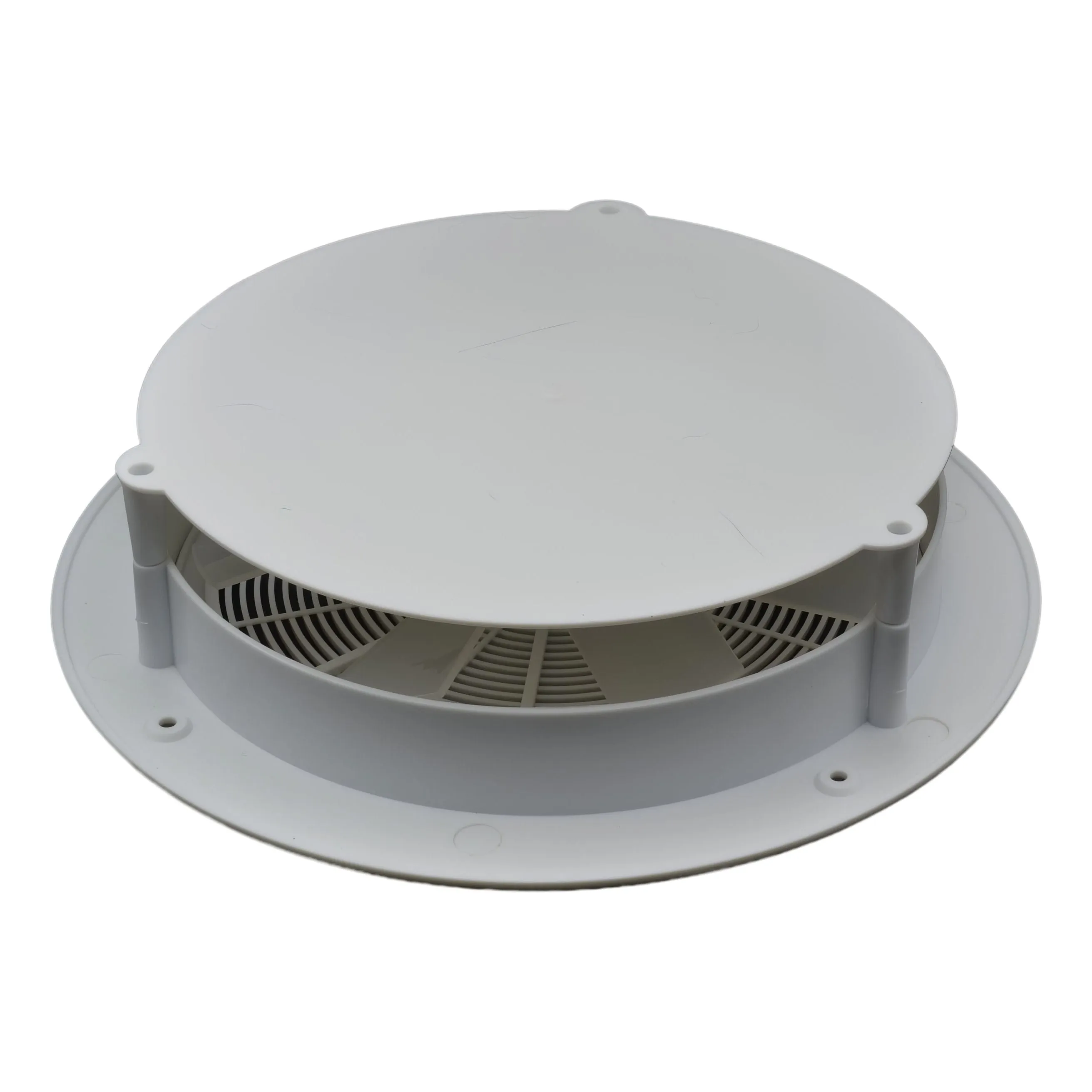

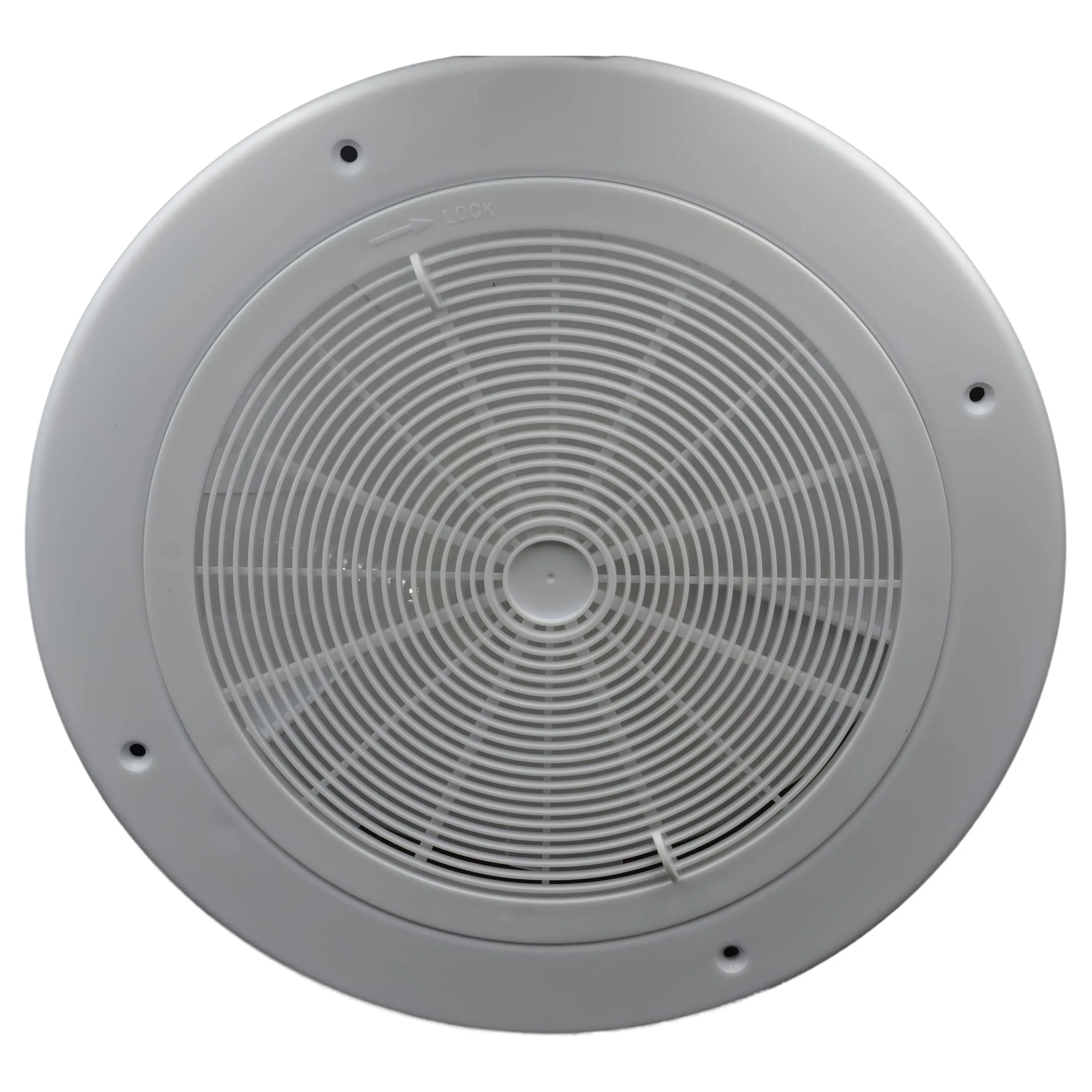

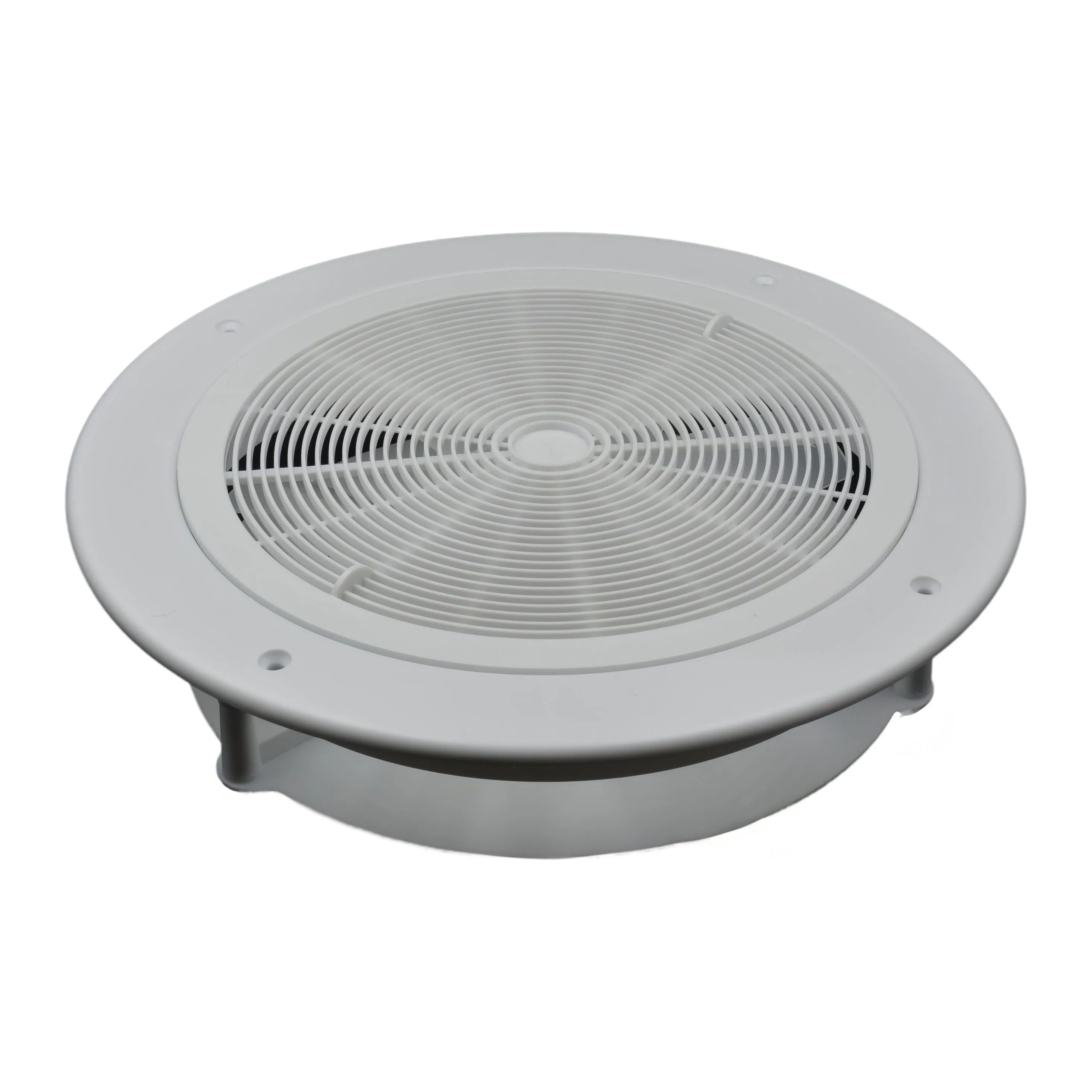

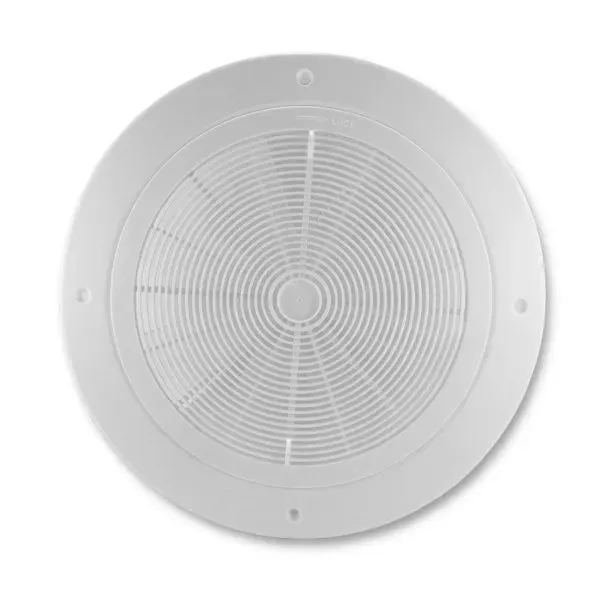

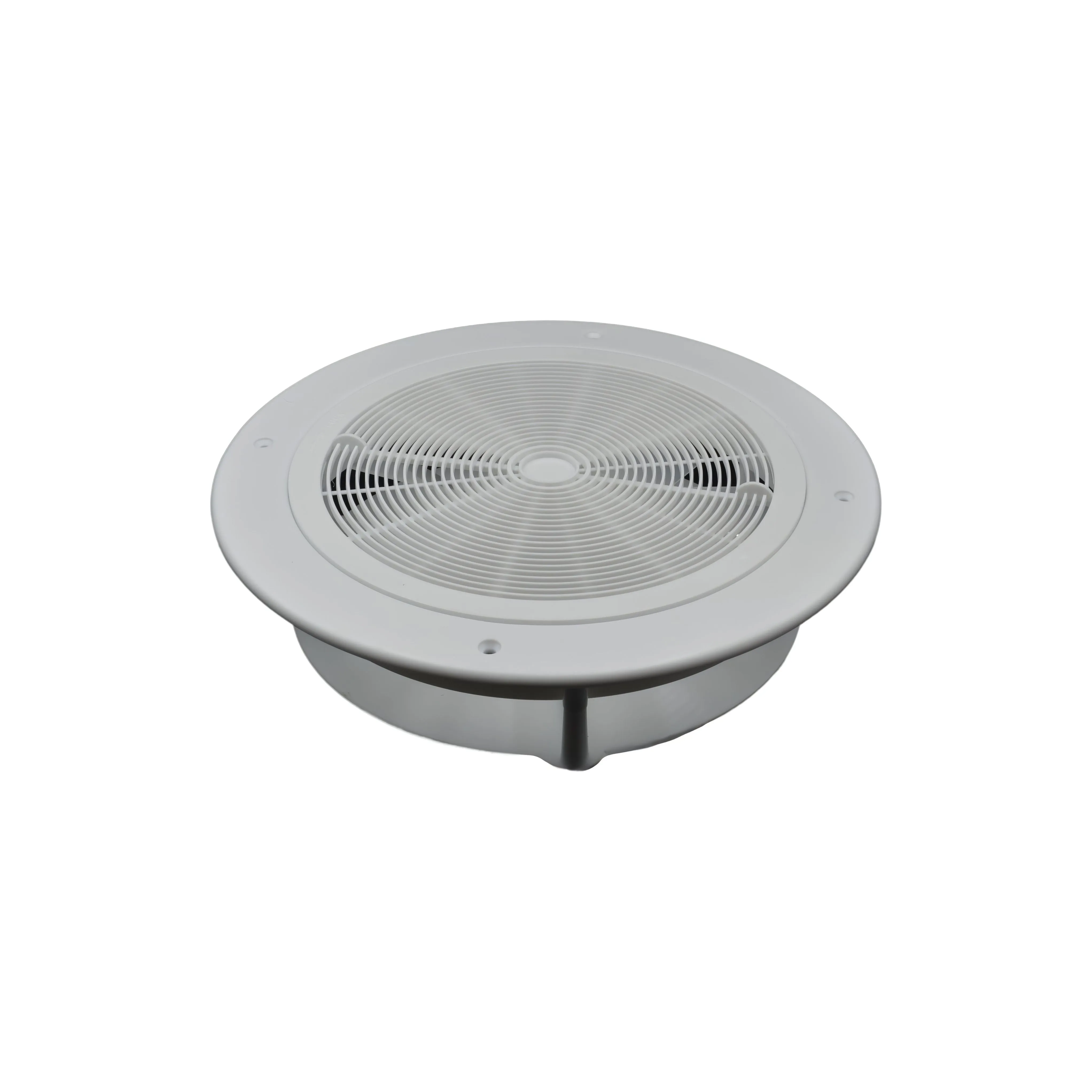

8CF Motorless Fan Ceiling Vent
The Haron 8CF plastic round ceiling vent provides efficient and durable ventilation, helping to reduce moisture and improve air flow by means of the fitted motorless built in fan. Its high-quality plastic construction ensures long-lasting use, while the 275mm size makes it suitable for a variety of applications. Improve your air flow with this reliable vent.
Specifications
- Part no: 8CF.
- Screw in fit.

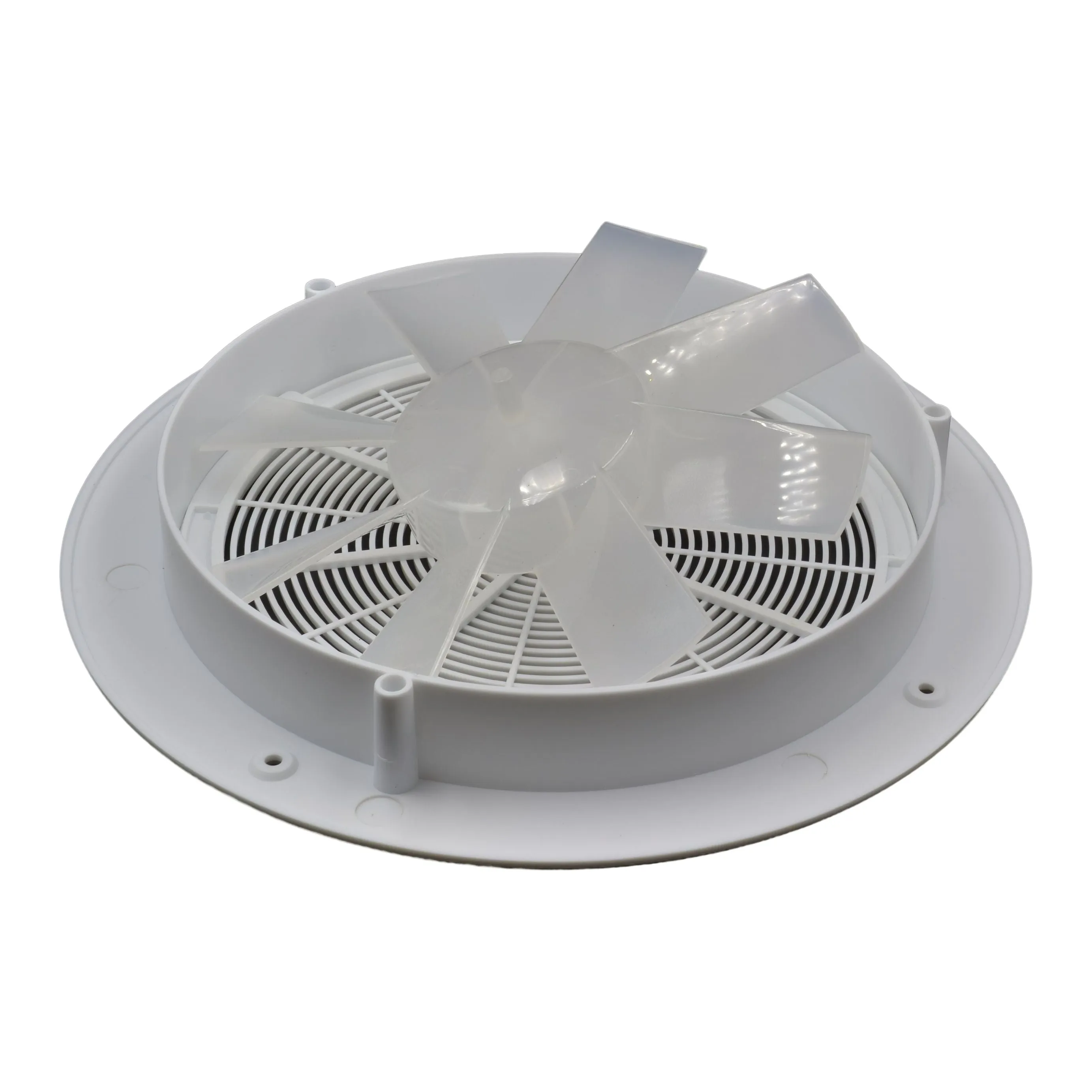

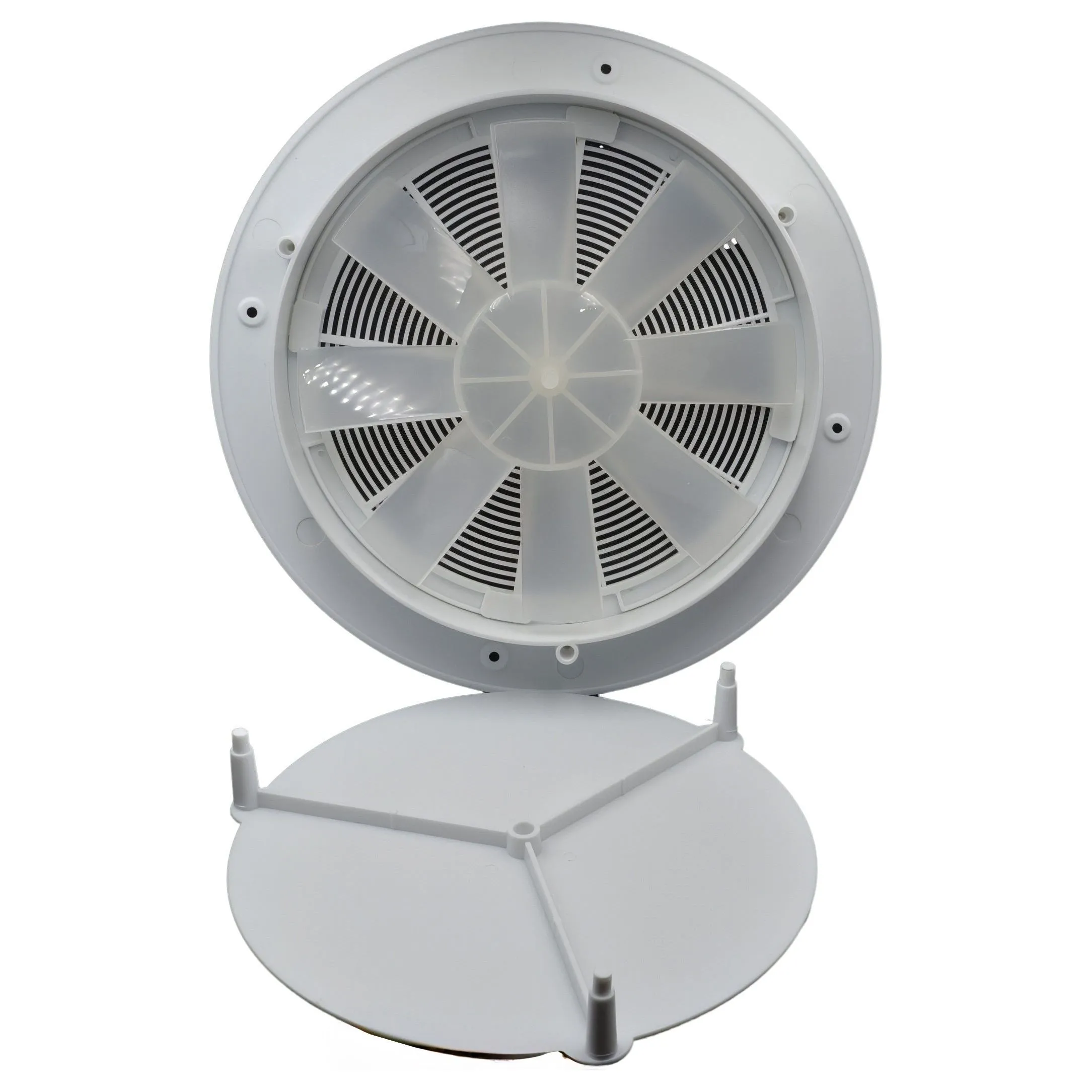

- Built in motorless fan.
- Vent facing size 275mm round.
- Max hole size 233mm round.
- White plastic.
- Easy quick fit installation.

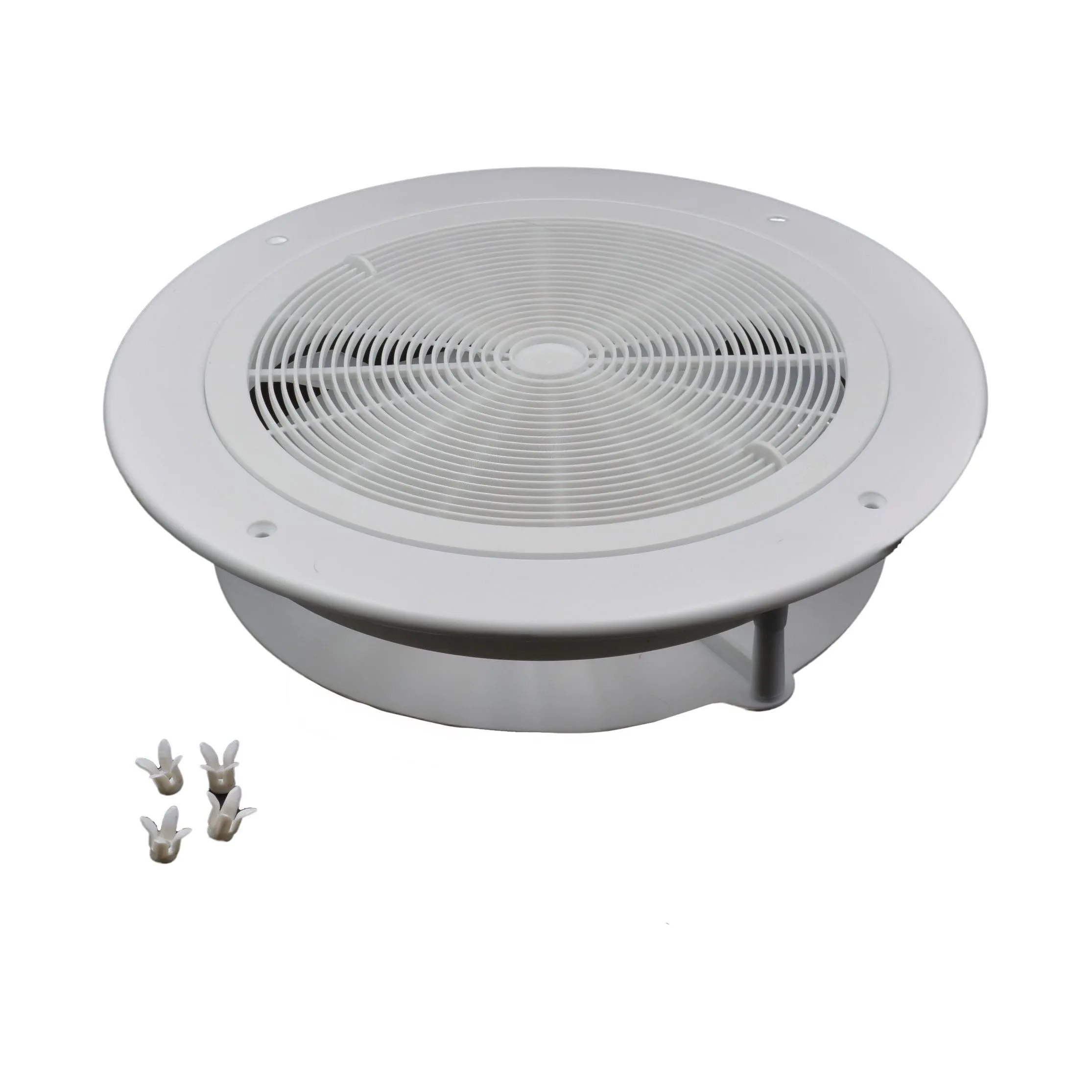

- Screws and fittings included
Installation

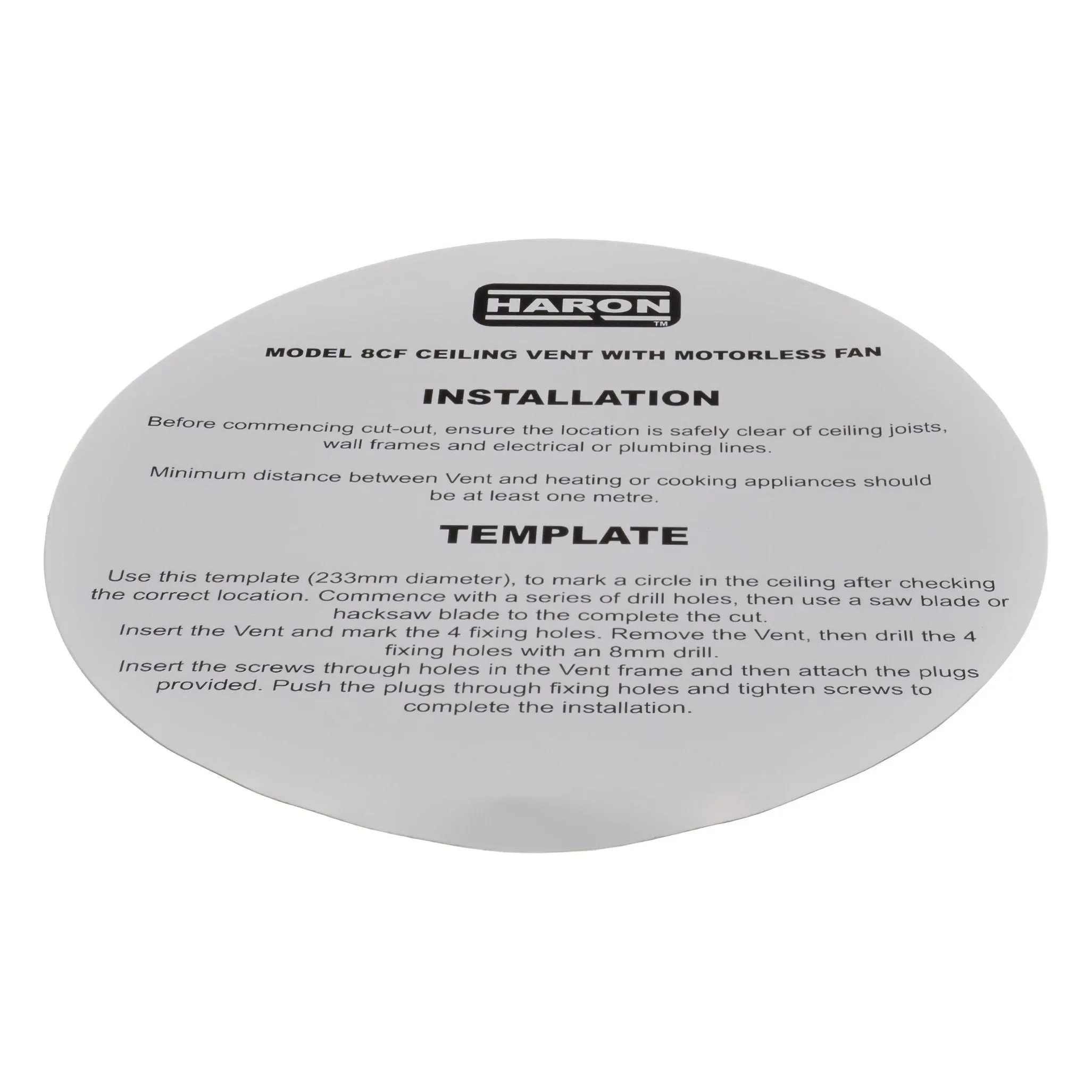

- Use the template provided to mark out a circle in the ceiling.
- Commence with a series of drill holes and then use a saw blade to complete the cut.
- Insert the vent and mark the four fixing holes.
- Remove the vent and then drill the four fixing holes with a 8mm drill bit.
- Insert the screws through holes in the vent frame and then attach the plugs provided.
- Push the plugs through the fixing holes and tighten the screws to complete the easy installation.
